Rails with Scaffold

We will build our first rails project but we will not really understand everything - that comes later.

After finishing this guide you will

• have finished your first rails project
• know how to use the scaffold generator
• know about the main folders of a rails project: config, db, app
• have an overview of what model, view, controller (MVC) means in rails

Slides - use arrow keys to navigate, esc to return to page view, f for fullscreen

1 Rails from the Outside In

Let's look at a fairly complex web application - the course management system for a university. How would the code for this app be organized, if it is written in Ruby on Rails?

The course management system surely deals with courses in some way.

Rails is organized along the distinction of model - view - controller (MVC). In our exmple we would find:

• an entry in conf/route.rb that configures the mapping of URLs and parameters to the controller
• several templates for courses in the folder app/views/courses/
• a ruby class in the apps/controllers folder with the class name CourseController
• a ruby class in the app/models folder with the class name Course
• a relational database in the backend. this database contains a table courses

As a rails programmer you know about all these folders and files. If you are told that there is a problem in the webpage with url http://myapp.com/courses/5/edit you immediately know to look in conf/routes.rb to find out exactly which files are concerned, but that the most likely canditates are

• app/models/course.rb
• app/controller/course_controller.b
• app/views/course/edit.html.erb

If you have not used a framework before this might feel very restrictive in the beginning: you can't just make up filenames any way you want, there is a convention for everything.

You have to stick to the convention if you want to profit from the framework, it will make your work as a programmer a lot easier. And you will profit from this convention every time you look at a new project - you'll instantly know your way around.

1.1 Start a Rails Project

Before you can start your first rails project you have to install ruby and the rails gem on your computer.

A word of warning: Ruby and Rails will work on any Unix, including Mac OS. To use them on a windows system you need a lot more patience and troubleshooting ability. So if you are a windows user you might consider running ruby and rails in a virtual (unix) machine (without GUI) instead.

Make sure you are using a current ruby (>= 2.3) and rails (>= 5.0) before you proceed:

$ ruby -v
ruby 2.3.1p112 (2016-04-26 revision 54768) [x86_64-darwin15]
$ rails -v
Rails 5.0.0.1

Another word of warning: rails moves fast. This textbook first written in the fall of 2012 for rails 3.2, and has been updated every year until fall 2016. If you are reading this in the far future (which in rails terms means: in late 1017 or later) you are probably using ruby 3 or later, and rails 6 or later, and this text is not for you!

Before you start your rails project you have to decide on the name (and folder name) of your application. The name of application cannot easily be changed afterwards! In the following example we create an app called 'alljokes':

rails new alljokes -T

The last step that was run automatically when creating a new rails project is bundle install. This will try to look up gems on the internet - if you are not connected to the internet you will be stuck here. You could try bundle install --local instead, that might help if the gems are installed on your computer already.

1.2 Rails Directory Structure

Rails will create a directory structure and about 40 files for you. Let's start to look at a few of them:

• Gemfile - in this file you specify which libraries (gems) your project uses
• app
  • model - contains all the classes of models
  • view - contains a folder full of templates for every controller
  • controller - contains all the classes of controllers
• config
  • database.yml - database configuration
  • routes.rb - configuration of routes
• public - the webspace. files in here are accessible without routing

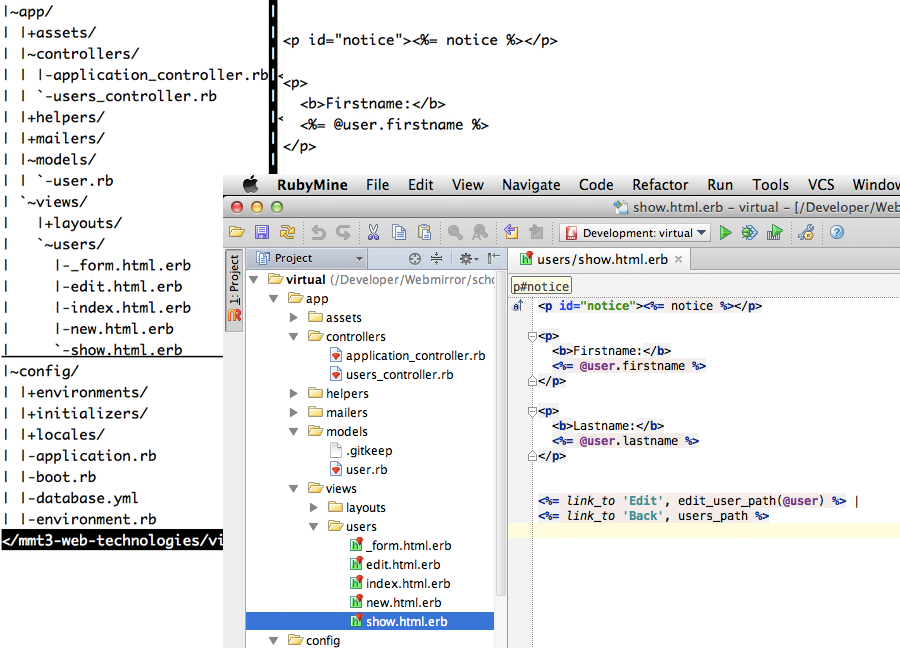

With your code split up into so many different files it is really useful to haven an editor that not only helps you edit a single file, but that will also display the directories and files. For example vim with NERDtree or submline or RubyMine:

1.3 Start the Webserver

Rails comes with a tiny webserver called puma. You start it in your terminal window (and then you need another window to go on working)

$ rails server

Now you can point your browser at http://localhost:3000/ to find the first webpage of your app. It's just a dummy page that will vanish once you add your own pages.

2 Make it a Git Repository

A new rails project is already prepared to be turned into a git repository: there is a .gitignore file in the main folder. (If you are using rubymine you could add /.idea to your .gitignore - that's the directory where rubymine stores it's configuration. You probably want to keep that private to each developer.

Create a new repository and commit in the current status:

$ git init .
Initialized empty Git repository in /Developer/alljokes/.git/
$ git add .

$ git commit -m 'empty rails project'
[master (root-commit) 2b2053c] empty rails project
 66 files changed, 1881 insertions(+)
 create mode 100644 .gitignore
 ..
 create mode 100644 vendor/assets/stylesheets/.gitkeep
 create mode 100644 vendor/plugins/.gitkeep

From now on you should commit your changes after every finished step of programming.

3 Scaffold

A scaffold helps you build something. In Rails a scaffold helps you generate code according to the conventions.

In our application we want to store jokes. Let's generate the scaffold for that: We want a model called joke with two attributes: a (short) title and a (longer) fulltext.

When we call the scaffold generator on the commandline we need to specify the name of the model, and the names (and types) of the attributes. short strings / varchars do not need a type at all.

$ rails generate scaffold joke title fulltext:text
      invoke  active_record
      create    db/migrate/20161112171526_create_jokes.rb
      create    app/models/joke.rb

This will generate about 30 lines of output, and create 15 new files. We will work through the files we need step by step:

3.1 Migration

The first file we have to look at is stored in db/migrate. The filename will be different from the one shown above, because it contains a timestamp.

Inside the file you will find

class CreateJokes < ActiveRecord::Migration[5.0]
  def change
    create_table :jokes do |t|
      t.string :title
      t.text :fulltext

      t.timestamps
    end
  end
end

This is ruby code to generate a database table. You can see the two attrivbutes you specified when you called the generator. There is also a line t.timestamps that will add two more attributes to the table: created_at and updated_at. Rails handles these to values automatically.

You can run the migration (tell ruby to actually create the table) by typing in rails db:migrate on the command line:

$ rails db:migrate
== 20161112171526 CreateJokes: migrating ======
-- create_table(:jokes)
   -> 0.0012s
== 20161112171526 CreateJokes: migrated (0.0013s) ===========

This actually created the table in a sqlite3 database called db/development.sqlite3. As a side effect it also dumped the current database schema into db/schema.rb and created a two extra tables schema_migrations and ar_internal_metadata.

3.2 Use your app

After running the migration your app is ready to be used: point your browser at http://localhost:3000/jokes/ to start.

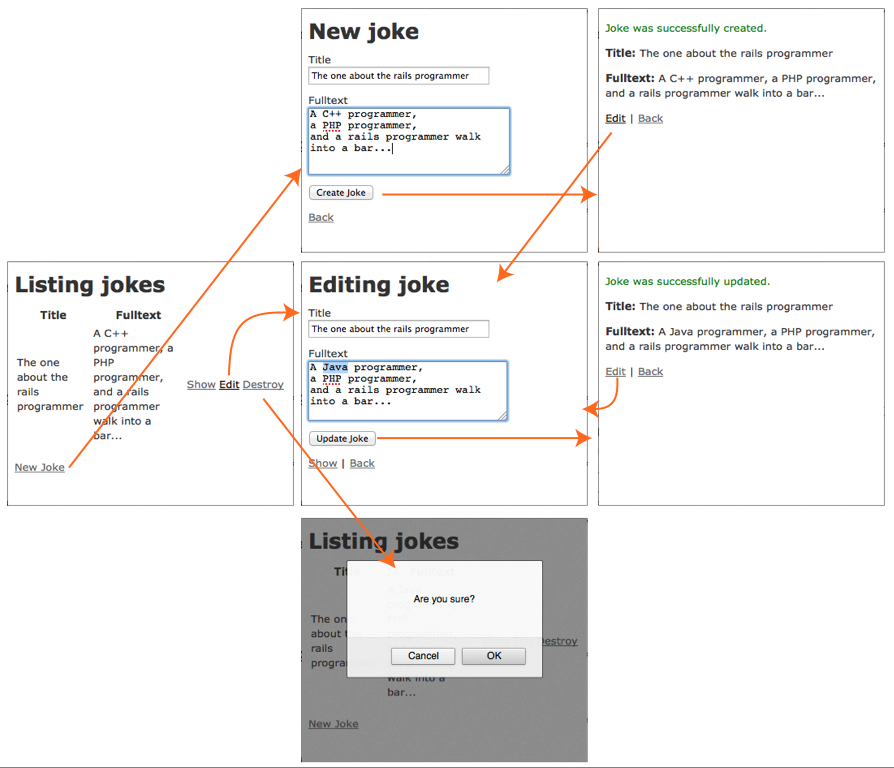

The scaffold generated four webpages that you can visit, to list, show, create, edit and destroy jokes:

• /jokes/ is a list of all the jokes, with links to create, edit and destroy them
• /jokes/1 shows a single joke, in this case the joke with id=1
• /jokes/new shows a form used to enter a new joke
• /jokes/1/edit shows a form to edit a joke, in this case the joke with id=1

3.3 View

You can find the views that correspond to the webpages in app/views/jokes. Try to add a bit of html to the following two views:

• index.html.erb is a list of all the jokes, with links to create, edit and destroy them
• show.html.erb shows a single joke

3.4 Model

The model is stored in app/models. Add the following validation:

class Joke < ApplicationRecord
  validates :title, presence: true
end

This tell the model not only accept jokes that have a title.

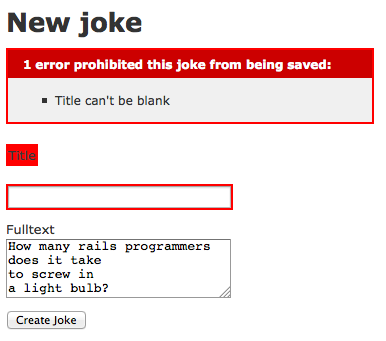

Now try to enter a new joke without a title, you should get a error message:

3.5 Summary

We built a first rails app and ran it locally on our own machine. You should now have an overview over the most important files and a first impression of ruby code (used in controllers, models) and embedded ruby (erb) used in the views.

Congratulations on your first step!
